Drzewiecki Canard

Click on the image to return to previous view
Click on image to return to previous view

About the model

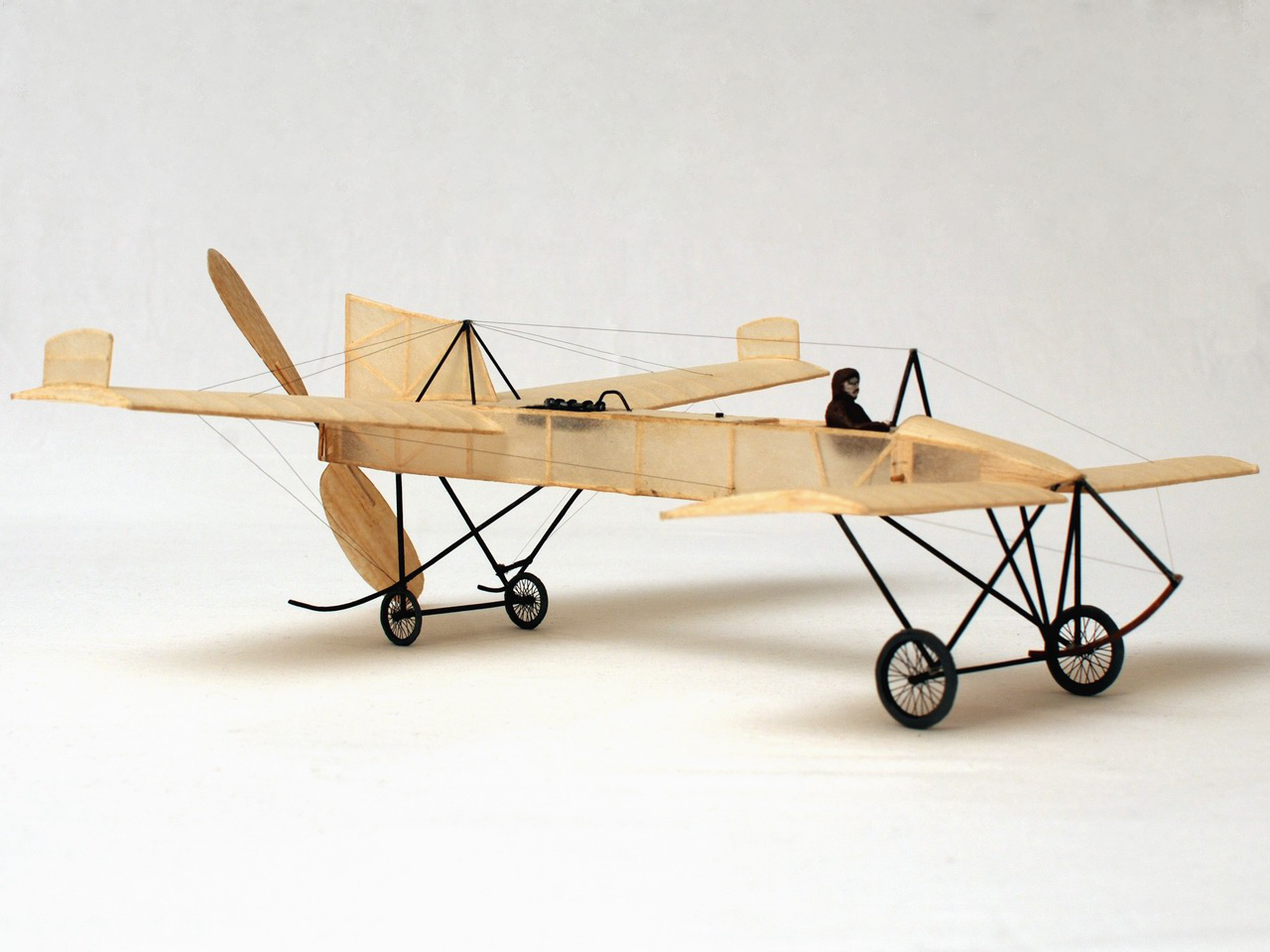

A model by Andrea Hartstein, built from the pistachio plan by Antonin Alfery in Peanuts & Pistachios No 4, but scaled up to (sligthly undersized) peanut. The model was made in 1995; you can gauge its age by the stains on the fuselage! It's a good flier, and has won the peanut class at the Swedish Nats several times. The construction is entirely traditional; balsa structure covered by undoped, unshrunken tissue (SAMS Early Bird tissue). The rigging wires were originally from hot-stretched plastic sprue. It looks good and is easy to work with, but it is rather fragile. A few wires would usually snap at every flying session. After a while I rerigged the plane with 0.07 mm copper thread, which is how it is shown in the photos. The pilot is carved from pink foam, which is lighter, but has a more grainy texture, than blue foam.

Some data:
Span: 28.5 cm
Weight (without rubber): 4.6 grams
Best flight: 94 seconds

About the origial
A construction by Stefan Drzewiecki, built by the French Ratmanof company. It was displayed at the 1912 Salon d'Aeronautique and tested in 1913. It was however not very successful, the pilot did not like the unusual control system, and there were problems with the power transmission due to the long propeller axle. A later model was entered in the 1914 Concourse de Sécurité, but crashed, killing the pilot.
Scale documentation can be found in: Polskie konstrukcje lotnicze 1893-1939 (3-view, photos, history)
