The Andreasson BA 4B
As a model plane, the Andreasson BA 4B is an old favourite from Walt Mooney's profilic peanut
production. It has been kitted by Peck-Polymers, and is a well proven flier.
History
In 1944 Björn Andreasson designed a diminutive biplane, the BA 4. The engine
was a 28 hp Scott Squirrel, but it did not give enough power and the plane was
flown only occasionally. Later it was re-engined, and it finally ended up in a
museum in Helsingborg.
In the 60's, Andreasson designed a modified version, the BA 4B, intended for
homebuilders. The shapes from the old BA 4 were still there, but riveted metal sheet
covering was substituted for the traditional construction techniques used in the
old version. The first flight of the prototype was made in July 1966, and later
some other BA 4B's have been built. The BA 4B is a fully aerobatic plane, and its
good flight characteristics led Andreasson to do a two-seated follow-up design, the BA 11.
Although there were plans to put it into commercial production, only one BA 11 got built.
A 3-view drawing of the BA 4B is found in "Flyghobby 1" by Freddy Stenbom.
More pictures

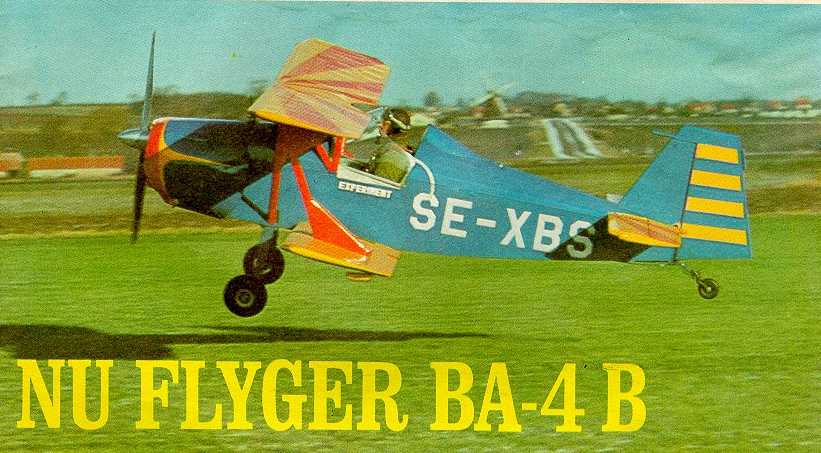

BA 4B taking off (57K)

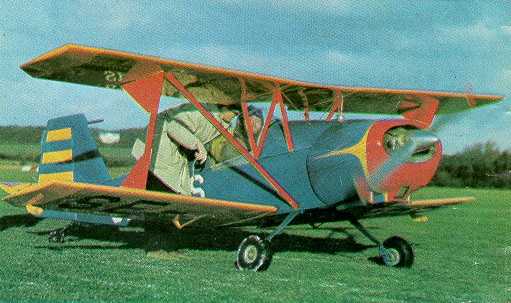

BA 4B on the ground (25K)

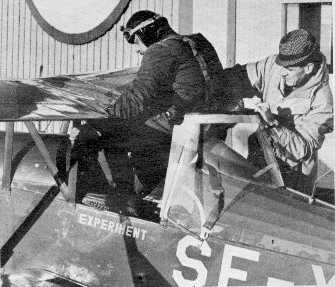

Climbing into the cockpit (16K)

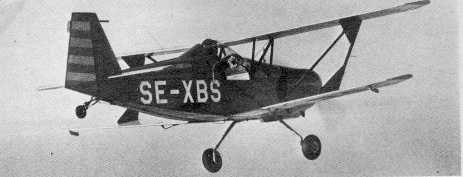

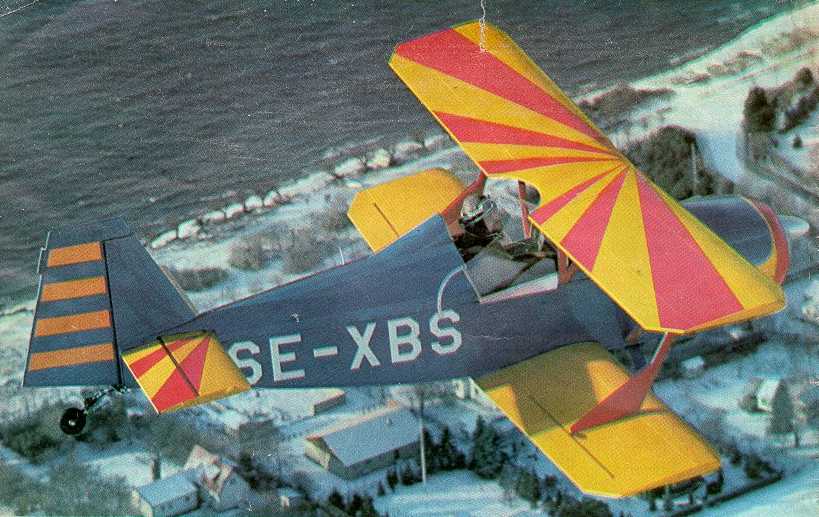

In flight (9K)
Instrument panel (14K)
Thanks to Lars Tolkenstam who provided the pictures.
